Trenchless Pipe Relining
No-Dig Drain
Repairs In
Pennant Hills
Relining turns a recurring drainage problem into a finished one. The joints that roots come through are sealed along the whole run, so there is no way back in, and nothing above the pipe gets disturbed to do it.
- Licence 368473C, public liability cover
- You see the fault on camera first
- Fixed price before work starts
When A Liner Is The Right Repair In Pennant Hills
Relining is a structural repair, not a cleaning method, and the distinction matters when you are comparing quotes. Jetting restores flow through a pipe that is still cracked. A liner restores the pipe.
That also means it is not always the answer. It cannot correct a run that has sagged or lost its fall, and it has nothing to line against where a section has collapsed. A camera survey separates those cases in about an hour, and the answer changes the cost by a multiple.
Layers of previous work, and what the camera finds
An older house is rarely on one generation of drainage. It is on three or four, joined wherever a bathroom moved or an extension went on, and the transitions between materials are where most faults sit.
A camera run on a property like this is genuinely diagnostic rather than a formality. It is common to find a sound original clay run, a poor 1970s junction, and a modern PVC section all on the same line, each needing a different answer.
Long runs and where the access points sit
Properties on a slope often have long drainage runs, sometimes crossing the whole block to reach the main. The practical questions are where the inspection openings are and whether the liner can be drawn through in one length or needs a second access.
That is worth establishing before quoting. A single long run costs less per metre than the same distance broken into stages, and the difference is decided by access, not by the pipe.
Groundwater going the wrong way
An open joint leaks in both directions. On a low-lying block that means stormwater and groundwater entering the sewer through cracks, which is called infiltration, and it quietly overloads a line that would otherwise cope.
Steep falls accelerate heavy rain toward Lane Cove National Park, overloading older stormwater lines and flushing leaf litter into pits and drains.
It shows up as a system that backs up in wet weather and behaves perfectly in dry. If that is the pattern, sealing the run is the fix, and no amount of clearing will reproduce the result.
What the camera has to show first
Root intrusion is not automatically a relining job. If the roots are fine and the pipe behind them is sound, a cut and jet with a maintenance interval can be the right call for years.
What moves it to relining is structural: an open joint you can see daylight through, a cracked barrel, or a run that has been cleared repeatedly at shortening intervals. Anyone quoting a liner without showing you the inside of the pipe is guessing, and you should ask for the footage.
Conservation areas and what is actually restricted
A listing does not stop you repairing a drain. What it restricts is change that is visible or that disturbs significant fabric, which is precisely what a trenchless repair avoids.
In practice that makes relining the path of least resistance on a listed or conservation-area property: nothing is removed, nothing changes above ground, and there is no reinstatement to get approved.
What it costs in Pennant Hills
Liner, $500–$900 a metre
The prevailing 2026 Sydney range for residential sewer relining.
Single defect patch, $1,500–$4,000
Proportionate for one fault in a sound run. We will recommend it over a full liner when that is what the camera shows.
Full-length reline, $6,000–$15,000
For a run failing along its length, which on old clay is the common finding.
The dig-up alternative, from $2,500 upward
Plus reinstatement. On a bare lawn it can win. Under anything you would miss, it usually does not.
Indicative Sydney ranges for 2026. Your job is quoted in writing after the camera survey. Figures here are indicative of the 2026 Sydney market rather than a quote from us, you get your own number as a fixed price before any work starts.
From Survey To Finished Liner
Step 01
Step 01
Camera The Line

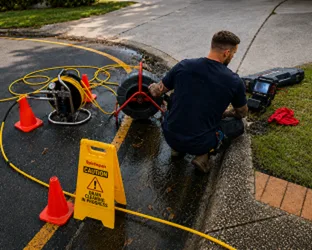

A CCTV survey establishes the material, the diameter, where the defects are and how far they sit from the access. You see the footage, and it is what the quote is built from.
Step 02
Agree The Method
Patch or full length, and occasionally excavation instead. We will tell you when digging is the better answer even though it is the bigger quote.
Step 03
Clean, Line And Cure
The run is jetted so the liner bonds to pipe rather than debris, the liner is installed through the existing access, and it cures in place. Most domestic jobs are a single day.
Step 04
Reinstate And Re-Camera
Every branch the liner passed is reopened from inside, then the run is cameraed again so you can see it is continuous and the junctions are clear.
Rather Talk It Through First?
Describe what the drain is doing and how often. We will tell you whether it sounds structural or whether a clean and a maintenance interval is the honest answer.
Relining, Answered Properly
Straight answers on price, durability and when to dig instead.
Relining is priced per metre and the range across Sydney in 2026 is roughly $500 to $900 a metre for a domestic sewer, with junction reinstatement and access usually quoted separately. A short patch repair over a single defect commonly lands between $1,500 and $4,000, and a full-length domestic run more often sits between $6,000 and $15,000. The honest comparison is not liner against nothing: it is liner against excavation plus reinstating whatever sits on top of the pipe.
No. A liner takes the shape of the pipe it cures inside, so it cannot correct a run that has sagged into a belly or lost its fall, and it has nothing to line against where a section has collapsed. Badly deformed or crushed pipe needs replacing. What relines well is the common case: a sound barrel with cracked or open joints, which is most older clay drainage.
Usually, but not always, and anyone who says always is selling. Relining wins wherever something valuable sits above the pipe: a driveway, established garden, paving, a building, or trading days you cannot afford to lose. Excavation wins on an open lawn with a shallow line, and it is the only answer where the pipe has collapsed, lost its fall or been crushed out of round. A camera survey is what tells you which case you are in.
No. A listing restricts change that is visible or that disturbs significant fabric, which is exactly what a trenchless repair avoids. In practice that makes relining the path of least resistance on a listed or conservation-area property: nothing is removed, nothing changes above ground, and there is no reinstatement to get approved.
Usually much better, because excavating on a slope is a different job from excavating on the flat. Machine access is often impossible, spoil has to go somewhere, trench walls need support, and reinstating a tiered garden or retaining structure can cost more than the drainage work itself. A liner is installed from an existing access and leaves the surface untouched.
Both. Stormwater suffers the same failures and relines the same way: cracked lengths, open joints, root intrusion and sections that silt because the fall has flattened. On a property that floods in every heavy downpour, a defective line is frequently the reason rather than the rainfall.
Because it is rarely on one generation of drainage. Original clay, a 1970s junction and a modern PVC section on the same line is a normal finding, and the transitions between them are where most faults sit. A slower survey is what prevents relining a run that actually needed one junction rebuilt.
